Secure Intercom Systems: The 2026 Hardening Playbook

A building’s intercom used to be a two-wire handset at the lobby door. Today it is an IP-connected, camera-equipped, cloud-managed endpoint that authenticates residents, controls electric locks, streams HD video, and stores biometric templates. That evolution makes the intercom the single most attractive target for an attacker who wants physical access — and the single most regulated device in the building when face recognition, resident data, and door control live behind it.

This playbook is written for facility managers, heads of physical security, and product owners commissioning new or upgraded secure intercom systems. We cover the threat model first, then the five architectural layers that actually stop attackers, then the standards (NDAA, FIPS, GDPR, HIPAA, ONVIF) you need to satisfy, then the protocol and vendor landscape, and finally the cost and KPI math. If you are choosing a development partner to build or harden an intercom product, the architecture and case-study sections describe the shape of work Fora Soft performs on secure real-time video systems.

Why Fora Soft wrote this playbook

Fora Soft has been building secure video and real-time communication software since 2005. Our work sits at the intersection of three disciplines that define a secure intercom: low-latency WebRTC and SIP media, AI vision on the edge, and regulated deployment environments. That combination is rare, and it shows up in what we ship.

On Netcam Studio we rebuilt a multi-camera IP surveillance suite with responsive web control, PTZ management, and event-driven recording — the same hardening patterns apply directly to a video intercom. On CirrusMED, a HIPAA-grade telemedicine platform, we run WebRTC with end-to-end encryption, audited logging, and strict role-based access — the same primitives that a GDPR-regulated residential intercom needs. On ProVideoMeeting we carry enterprise-grade conferencing with digital signatures and phone dial-in, which maps directly onto intercom-to-PSTN gateway designs.

We also lean heavily on Agent Engineering inside our own delivery pipeline, which lets us ship secure intercom firmware and cloud services faster and more affordably than a traditional outsourced team. If you are comparing quotes, that gap is real.

What “secure” actually means for a modern intercom

A secure intercom system is not a product you install; it is a property of a system that holds up under three tests. Strip the marketing slogans away and “secure” means this.

1. Confidentiality. Nobody off-path can eavesdrop on a call, recover a face template, or lift a door-code from the wire or the flash chip. All media and signalling are encrypted with modern ciphers, keys are held in tamper-resistant silicon, and forward secrecy is enforced so a future key leak does not decrypt yesterday’s footage.

2. Integrity and authenticity. The device you are talking to really is the intercom at unit 4B, not a spoofed endpoint. Firmware is signed. Every command is authenticated. The system detects and logs tampering — physical, network, or administrative.

3. Availability and accountability. Residents can open the door when they need to, security staff can audit who opened what and when, and the system fails safe (locked, logged, and alerted) rather than fails open. Every access event is tied to an identity and stored tamper-evidently.

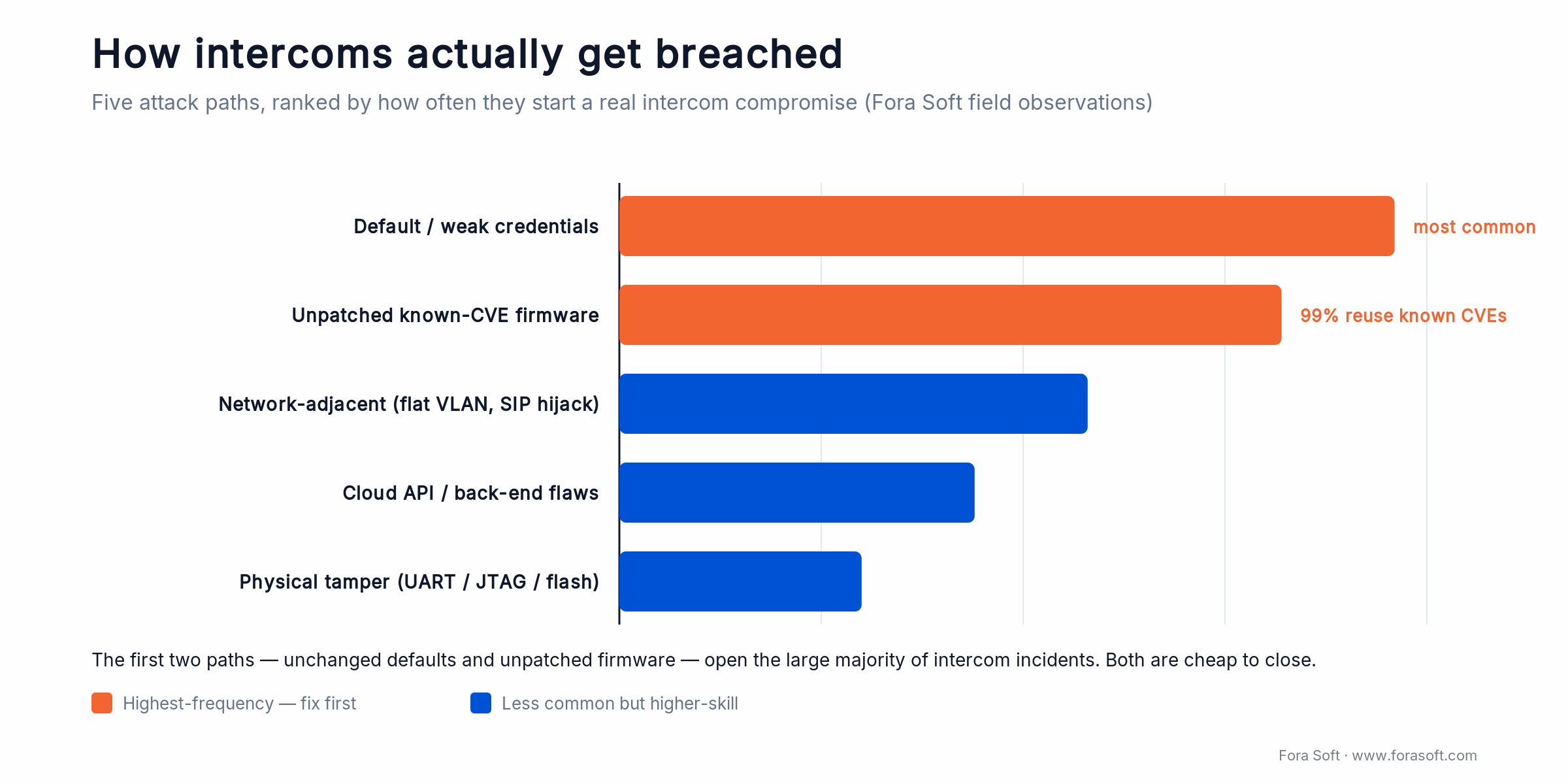

The threat model — what attackers actually do

Skip the abstract risk registers. In practice, the attack paths we see against intercoms cluster into five patterns, and 80 percent of real breaches start with the first two.

1. Default credentials. Roughly 45 percent of IP intercoms are shipped into production with an unchanged admin password. Shodan and ZoomEye index them; attackers scan and log in. Akuvox devices were famously exposed in a 2023 Claroty advisory for this exact class of issue.

2. Unpatched firmware. Gartner’s 2024 IoT survey pegs around 70 percent of building-facing IoT devices as running firmware with known CVEs. Vendors patch, but buildings rarely install — the median time-to-patch for legacy intercom fleets is 6–12 months.

3. Network-adjacent attacks. ARP spoofing, rogue DHCP, downgrade attacks on TLS/DTLS, SIP registration hijack. Intercoms on the same VLAN as office printers and visitor Wi-Fi are sitting ducks for lateral movement.

4. API and cloud back-end flaws. ButterflyMX saw a 2024 API-token validation weakness that exposed resident data. When the intercom is cloud-managed, the cloud tenant is also part of the attack surface — broken OAuth, unchecked multi-tenant IDs, verbose error messages.

5. Physical tampering. USB or UART ports left enabled on outdoor faceplates, JTAG exposed on the board, flash chips that dump keys under an eight-dollar programmer. A motivated attacker with ten minutes of alone time on the faceplate can own most legacy units.

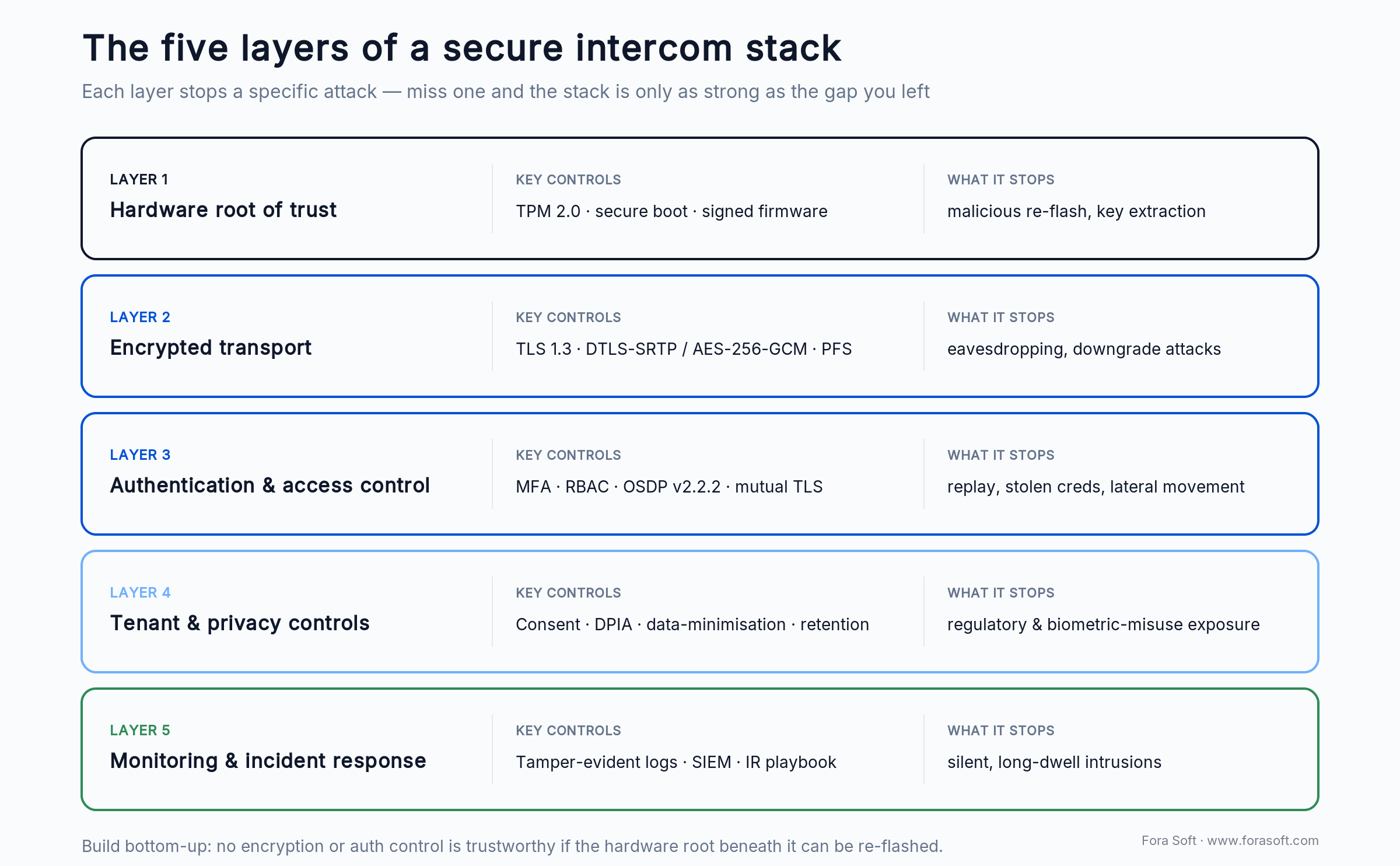

The five layers of a secure intercom stack

Every layer below exists because one of the attack paths above keeps biting teams that skip it. Treat them as a checklist — if any one layer is missing, the stack is only as strong as the layer you forgot.

• Hardware root of trust — TPM 2.0 or HSM, secure boot, signed firmware.
• Encrypted transport — TLS 1.3 for signalling, DTLS-SRTP with AES-256-GCM for media, PFS everywhere.
• Authentication and access control — multi-factor, RBAC, OSDP over IP, mutual TLS between services.
• Tenant and privacy controls — consent, retention, DPIA, GDPR Article 9 data-minimisation, BIPA-aware biometric capture.
• Monitoring, logging, and incident response — tamper-evident audit logs, centralised SIEM, documented playbooks.

Layer 1 — hardware root of trust

Everything above this layer is software, and software can be re-flashed, debugged, or cloned. Hardware roots of trust anchor the system in silicon that cannot be trivially read or written.

TPM 2.0 on-device

A Trusted Platform Module is a dedicated chip that stores keys, measures firmware on boot, and refuses to hand over secrets unless the platform state matches a known-good baseline. Modern 2N, Axis, and Doorbird units ship TPM 2.0; Akuvox and Fermax have followed. Specify it in your RFP — if the device only offers software-only key storage, walk away.

HSMs for the cloud and key management

On the back-end, a FIPS 140-3 validated HSM (AWS CloudHSM, Thales Luna, YubiHSM) holds the tenant root keys and signs firmware releases. This is the boundary between “our engineers can see the keys” (they should not) and “only the HSM can use them.” For NDAA- and federal-grade deployments, FIPS validation is a contract requirement, not a nice-to-have.

Secure boot and signed firmware

The bootloader verifies each stage against a public key burned into the silicon. If an attacker swaps the firmware, the device refuses to boot. Every firmware update is signed by the vendor and verified before installation. This eliminates the “load malicious firmware via USB” path entirely.

Layer 2 — encrypted transport, done properly

Encryption is the one area where “close enough” is not enough. Modern audio/video intercom protocols have well-defined crypto stacks; use them, turn off fallbacks, and enforce minimums.

TLS 1.3 for signalling

SIP signalling, REST APIs, and admin consoles all ride TLS. TLS 1.3 removes weak ciphers from the negotiation entirely, enforces forward secrecy by using ephemeral Diffie-Hellman, and shortens the handshake. Disable TLS 1.0, 1.1, and 1.2 fallback wherever your device fleet lets you — dependent clients should move to 1.3 by now.

DTLS-SRTP with AES-256-GCM for media

Audio and video packets ride UDP, so they use DTLS-SRTP (RFC 5764) instead of TCP-based TLS. Choose AES-256-GCM over AES-CBC — GCM is authenticated, runs in hardware on most SoCs, and avoids the padding-oracle class of flaws that hit CBC implementations. The Axis 2024 DTLS-SRTP cipher-downgrade CVE is a useful reminder: make sure fallback to unencrypted RTP is explicitly disabled at the device level.

Perfect forward secrecy and post-quantum readiness

Perfect forward secrecy (PFS) means every session uses a unique key, derived from ephemeral Diffie-Hellman, that is discarded when the session ends. Without PFS, an attacker who steals your long-term private key can decrypt every recorded session. With PFS, they cannot. TLS 1.3 enforces PFS by default. Post-quantum readiness — hybrid key exchange using X25519+Kyber is the current industry direction — is worth asking vendors about now so you are not stranded on a pure-ECDH stack in five years.

Layer 3 — authentication and access control

Encryption stops the wire attacker. Authentication stops the everybody-else attacker — the contractor with a stolen tablet, the former resident with a replay of last week’s unlock packet, the admin intern who clicks “grant access” on the wrong line.

Multi-factor for residents and administrators

Something you have (phone, fob, mobile credential), something you know (PIN), and for higher tiers something you are (face or fingerprint). Aim for at least two factors at every administrative interface. Residents can usually work with single-factor mobile credentials, but building admins and locksmiths absolutely must not.

OSDP over IP instead of Wiegand

The legacy Wiegand protocol carries unencrypted, unauthenticated signals between reader and controller — trivially sniffed and replayed with a $50 device. OSDP (Open Supervised Device Protocol) v2.2, particularly over IP, carries AES-128 encrypted and mutually authenticated traffic, and is endorsed by the Security Industry Association as the default for new deployments.

RBAC, mutual TLS, and Zero Trust

Every service-to-service call in the cloud back end authenticates with mutual TLS (client certificate). Every admin role has the minimum permissions required. No implicit trust based on network position — a compromised CCTV on the same VLAN should not be able to talk to the access-control server. This is the Zero Trust posture NIST SP 800-207 describes; you do not have to adopt it wholesale, but every new service should be built on its assumptions.

Layer 4 — tenant and privacy controls

A secure intercom is also a privacy-respecting intercom. Faces, voices, door-events, and access patterns are personal data under most regimes, and biometrics are special-category data almost everywhere.

GDPR Article 9 and EDPB guidance

Face recognition on an intercom is special-category processing under GDPR Article 9. That means explicit opt-in, a documented legitimate interest or consent basis, and a Data Protection Impact Assessment. EDPB Guidelines 3/2019 on video devices spell out the residents’ rights — signage, access, erasure — that the system must honour operationally, not just in the privacy policy.

Illinois BIPA and state biometric laws

If any unit will be deployed in Illinois, the Biometric Information Privacy Act imposes $1,000–$5,000 statutory damages per biometric capture without prior written consent. That is a class-action grade exposure for any multi-tenant operator. Texas, Washington, New York, and several other states have similar — though softer — laws coming into force. Plan consent flows per jurisdiction.

EU AI Act for biometric identification

The EU AI Act (Regulation 2024/1689) classifies real-time remote biometric identification as high-risk. Intercoms with face recognition that unlock doors land in that category and must document algorithmic transparency, human oversight, and impact assessments. The Act is phasing in through 2025 and 2026; do not deploy an AI-driven intercom in the EU without legal input.

HIPAA for healthcare facilities

In hospitals and clinics, the intercom is incidentally in scope for HIPAA when it captures, transmits, or stores protected health information — for example, a patient saying a diagnosis at a unit door. Encryption in transit and at rest, RBAC, and audit logging are then mandatory under 45 CFR §164, and the back-end vendor needs a Business Associate Agreement.

Layer 5 — monitoring, logging, and incident response

Every breach we have seen ended up being a missed alert. The logs were there, nobody was looking at them, and by the time the alarm rang the attacker had already left. Three practical controls make the difference.

1. Tamper-evident audit logs. Every unlock, admin action, firmware update, and failed login is written to an append-only store, ideally with hash-chained records so deletion is detectable. Keep logs at least 12 months, longer where regulation demands.

2. Central SIEM with intercom-aware rules. Feed device telemetry into a SIEM (Splunk, Elastic, Datadog Security) and ship rules that catch the specific attack patterns for intercoms: repeated failed auth, unexpected firmware change, door held open beyond SLA, face match confidence anomalies, lateral-movement network flows from a faceplate IP.

3. Documented incident response playbook. Who kills access when a credential leaks? Who updates the firmware? Who notifies the DPO within GDPR’s 72-hour window? Write it down, drill it twice a year.

Standards and compliance you cannot skip

The standards below are the ones we get asked about most often on intercom and access-control engagements. If your deployment touches any of the contexts in the right column, the standard is effectively mandatory.

Protocol choices — SIP, WebRTC, and OSDP compared

Three protocol families dominate modern intercom stacks. The right mix depends on whether you need phone interoperability, in-browser calling, or legacy access-controller support.

SIP with SIPS + SRTP

The default for intercoms that talk to a PBX, a security desk handset, or a PSTN gateway. Use SIPS (SIP over TLS) for signalling and SRTP (or DTLS-SRTP) for media; do not trust NAT ALGs to help — they routinely break encrypted SIP and should be disabled at the edge router.

WebRTC for browser and mobile apps

Where the caller or the resident app lives in a browser or a mobile app, WebRTC is a better fit than SIP. It brings DTLS-SRTP, ICE, STUN, and TURN for NAT traversal, and mature authenticated identity. Fora Soft is deep in WebRTC engineering, which is why we default to it on greenfield intercom cloud back ends.

OSDP over IP for access control

Between the intercom faceplate and the access controller, OSDP v2.2 over IP replaces the old Wiegand wires. It carries AES-128 encrypted, mutually authenticated messages and supports supervised monitoring (the controller knows when a reader disappears). Migrating from Wiegand is the single highest-leverage hardening move for most legacy buildings.

The vendor and platform landscape compared

A quick cut of the intercom market by the decisions you actually make — enterprise hardware, cloud-managed platforms, and the NDAA-excluded vendors. Pricing is indicative; 2026 deals move with tenant density.

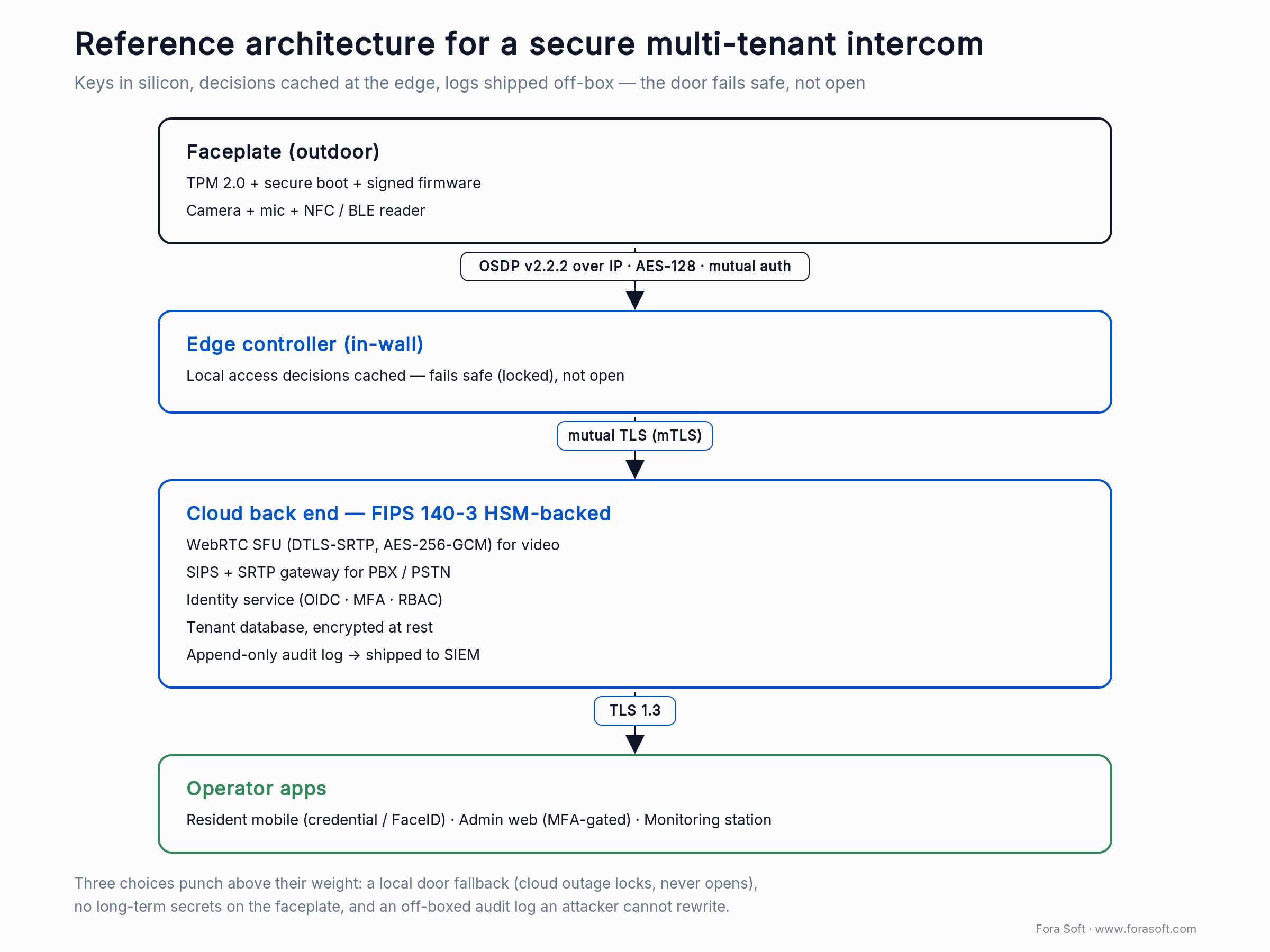

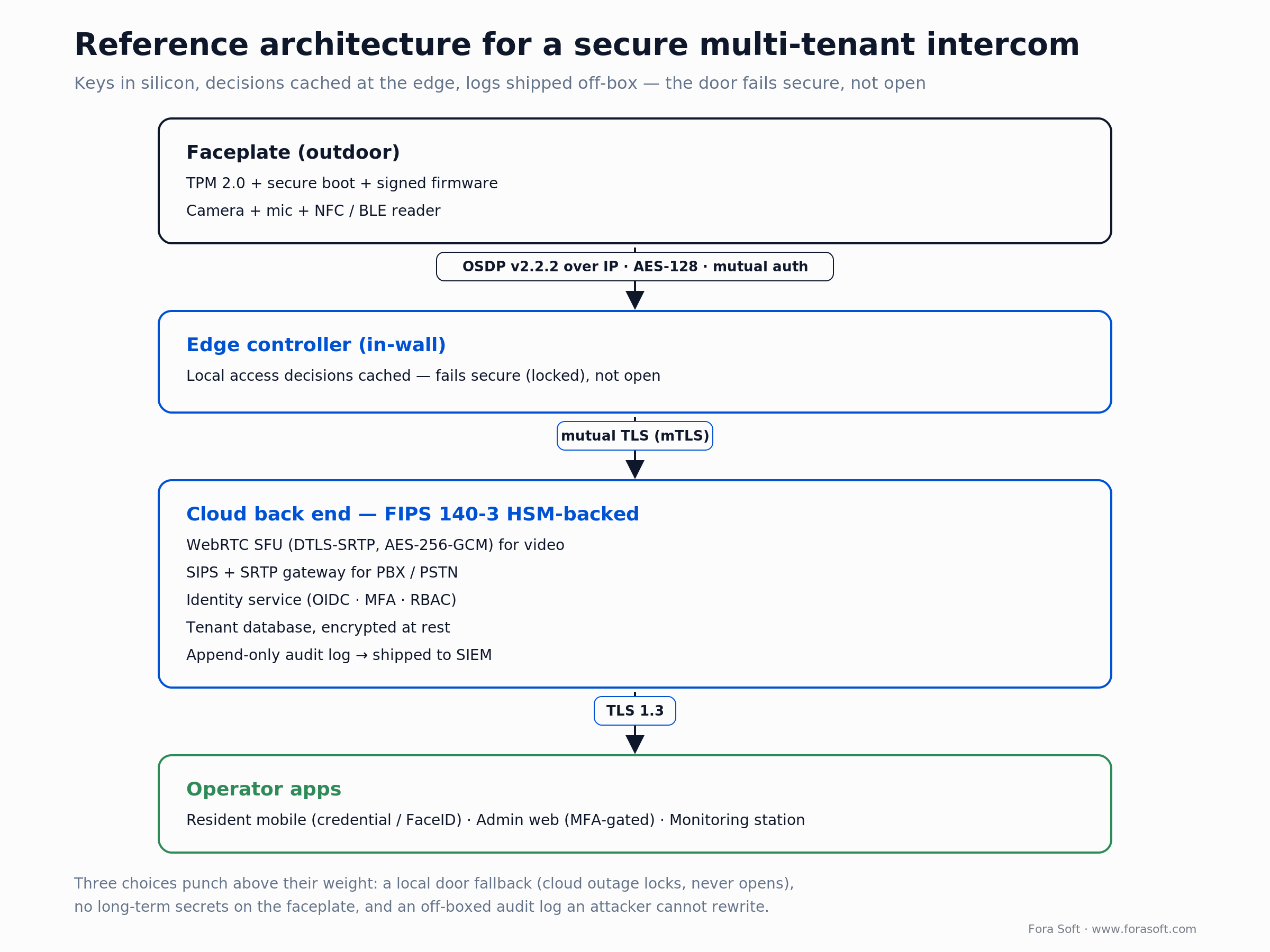

Reference architecture for a secure multi-tenant intercom

The shape below is the one we deploy on new secure-intercom builds. It is opinionated but it is also boring, and “boring” is the correct adjective for a security architecture.

Faceplate (outdoor)
  |- TPM 2.0 + secure boot + signed firmware
  |- Camera + mic + NFC/BLE reader
  |- OSDP v2.2 over IP to controller (AES-128, mutual auth)
  v
Edge controller (inside wall)
  |- Local access decisions cached (fails safe, not open)
  |- mTLS to cloud
  v
Cloud back end (FIPS 140-3 HSM-backed)
  |- WebRTC SFU (DTLS-SRTP, AES-256-GCM) for video calls
  |- SIPS + SRTP gateway for PBX / PSTN
  |- Identity service (OIDC, MFA, RBAC)
  |- Tenant database (encrypted at rest)
  |- Append-only audit log, shipped to SIEM
  v
Operator apps
  |- Resident mobile (iOS/Android, mobile credential, FaceID)
  |- Building admin web app (MFA-gated)
  |- Central monitoring station (CMS) integration

Three design choices in this architecture punch above their weight. First, every door decision has a local fallback, so a cloud outage locks the building safely instead of opening it. Second, the faceplate holds no long-term secrets — keys live in the TPM and can be revoked remotely. Third, the audit log is append-only and shipped off-box continuously; an attacker who compromises the device cannot cover their tracks.

Mini case — hardening secure video surveillance at scale

A concrete example from our portfolio. On Netcam Studio we rebuilt a multi-camera IP surveillance platform with PTZ control, mobile-ready responsive UI, and event-driven recording. The core security moves carry straight to an intercom project: device-scoped credentials, TLS everywhere, least-privilege tenant isolation, and a monitoring surface that exposes anomalous access patterns in near real-time.

On CirrusMED, our HIPAA-grade telemedicine platform, we ran the same WebRTC stack we recommend for browser-based intercom apps — DTLS-SRTP, strict TURN authentication, and audit logging of every session. HIPAA forced us to document the same controls that a GDPR- or BIPA-scoped intercom needs, which is why our template documents, DPIAs, and control catalogues transfer directly onto a new intercom engagement.

We have also applied these patterns on DSI Drones for low-latency video telemetry and on Cloud Doctors for secure patient-to-physician video. The common thread is that we ship real-time video with the same engineering discipline that a secure intercom demands.

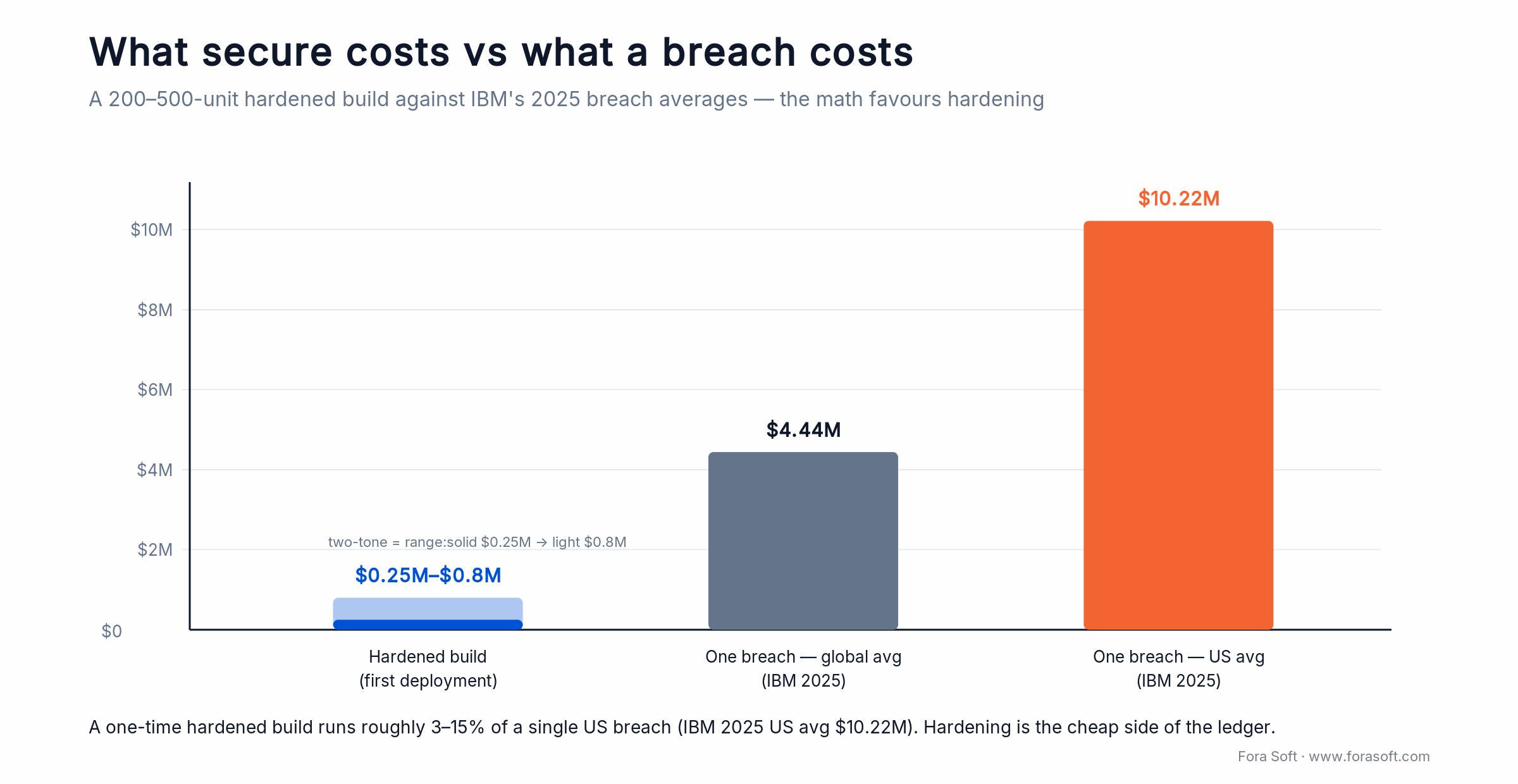

Cost model — what secure actually costs

The common objection is that security drives cost up. In practice, the marginal delta for a properly secured intercom is modest, and almost always lower than the expected cost of a single serious incident. The table below is a realistic bill of materials for a 200- to 500-unit multi-tenant residential or corporate build.

The reference figure to hold against those numbers is the IBM Cost of a Data Breach report’s multi-million-dollar average for compromises that involve physical access or biometric data. Even conservative adjustments for a single mid-size building keep the avoided-loss side of the ledger well above the hardening side.

A decision framework — scope your secure intercom in five questions

Q1. What data will the intercom touch? Faces, PHI, regulated tenant data, or just unlock events? The more regulated, the more you must invest in encryption, logging, and legal review.

Q2. Who must it exclude? Is the threat model an opportunistic burglar, a targeted insider, a nation-state adversary? The answer decides whether TPM and signed firmware are optional or mandatory.

Q3. Which jurisdictions will it serve? EU? Illinois? US federal? Each answer pulls specific compliance obligations — GDPR, BIPA, NDAA — into the project scope from day one.

Q4. How long must it live? A 10-year deployment demands post-quantum readiness and an in-house patch pipeline. A 3-year pilot can accept a shorter crypto horizon.

Q5. What is the fail-safe behaviour? Locked and logged when something goes wrong, or open for convenience? If the answer is not “locked and logged,” reopen the threat model.

Five pitfalls that quietly kill intercom security

1. Leaving default credentials. The single most common finding in every audit we run. Force password change on first boot, block weak passwords, and alert on admin logins outside business hours.

2. Flat VLANs. Putting intercoms on the same network as office printers, resident Wi-Fi, and vending machines. Segment ruthlessly — intercoms get their own VLAN with tight ACLs to the access-control server only.

3. Ignoring the cloud outage failure mode. Cloud-managed intercoms that lose all door control when the internet blips are a fire-code issue, not just an annoyance. Always cache decisions at the edge, and always fail safe.

4. Face recognition without DPIA. Deploying face-unlock in a residential or corporate building without a Data Protection Impact Assessment is a guaranteed regulator visit in the EU and a guaranteed class-action target in Illinois. Do the legal work up front.

5. No patch pipeline. Vendors release CVE fixes, buildings never apply them. Negotiate a managed firmware pipeline with the vendor or your integrator so patches land within 30 days of release, not 12 months.

KPIs — what to measure

Security KPIs. Percentage of fleet on the latest firmware (target 95 percent within 30 days of release). Percentage of devices with default credentials (target zero). Mean time from CVE disclosure to patched fleet (target under 30 days). Number of unauthorised admin login attempts (baseline + anomaly alerts).

Operational KPIs. Door-open latency (target under 2 seconds for credentialed user). Call-answer latency at security desk. False-reject rate on biometrics (sub-1 percent). System availability (99.95 percent inside fail-safe bounds).

Compliance KPIs. DPIA coverage across regulated jurisdictions. Audit-log retention days versus regulatory minimum. Completed staff training on privacy and incident response. Time-to-notify in last tabletop exercise — measured against GDPR’s 72-hour rule.

When NOT to build custom

A custom-built secure intercom is not the right answer for every building. If you operate fewer than 50 units, have no unusual regulatory context, and have no product-differentiation story around the intercom itself, an enterprise Western off-the-shelf unit from 2N, Doorbird, or Commend paired with a reputable cloud platform will usually beat a custom build on both cost and time.

Custom builds pay off when the intercom is the product (a smart-building SaaS, a residential experience brand, a regulated-industry deployment), when you need white-label control, when integration with a bespoke back end matters, or when the fleet is large enough that small per-unit savings swamp the engineering cost. If any of those apply, the rest of this playbook is your scoping document. If none do, pick an off-the-shelf stack, follow the hardening rules, and move on.

FAQ

What to read next

Ready to secure your intercom stack?

A secure intercom system comes down to five interlocking layers — hardware root of trust, encrypted transport, strong authentication and access control, tenant privacy, and continuous monitoring — operating inside a compliance envelope shaped by NDAA, FIPS, ONVIF, GDPR, HIPAA, BIPA, and the EU AI Act. None of the individual controls is exotic. What makes secure intercoms hard is operating all of them together, keeping them patched, and proving to auditors that you did.

If you apply this playbook, three things happen. Breach likelihood drops because default credentials and unpatched firmware — the two biggest drivers — stop being an issue. Regulator and litigation exposure drops because consent, DPIA, and audit logs are in place before a complaint lands. And your residents and tenants get a system that does the unglamorous job of letting them in, every day, reliably, without becoming the security story in next year’s news cycle.
